Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

Name: Electrical Accessories Figure8 Fiber Optic Cable Anchor Clamp
Brand: DOWELL
Price: 1 USD

Quality Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp for sale

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Model Number : PA-07

Packaging Details : Normal Package

Supply Ability : 10000 PCS Per 7 Days

MOQ : 1000 pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Material : 304 Stainless Steel+Nylon

Cable Diameter : 3-8mm

MBL : 5 KN

Color : Black

Contact Now

Electrical Accessories Figure-8 Fiber Optic Cable Anchor Clamp

PA-07 are designed for fixing and keeping in tension the optical cable with a remote metal power element type 8 on the supports of overhead power lines, communications, urban electrical facilities (street lighting, land electric transport), elements of buildings and structures with a span length of up to 100 meters. The clamp consists of a high-strength polymer housing, steel wedges with teeth, for securing the cable from slipping, stainless steel cable 3–8 mm. It complies with International Standard NFC 33-041.

Specification:

Range of Conductor Size	3-8mm	Color of Connector Core	Black
Body Material	UV Stabilized Thermoplastic Nylon Fiber Glass Filled, Aluminium alloy	Bail Material	304 Stainless Steel
Breaking Load	5 KN	Routine Test	1. DimensionalVerification 2. Mechanical Test. a) Product Break 3. Visual a) Marking (Printing & Embossing) b) Overall finish c) Packaging Quality

Application:

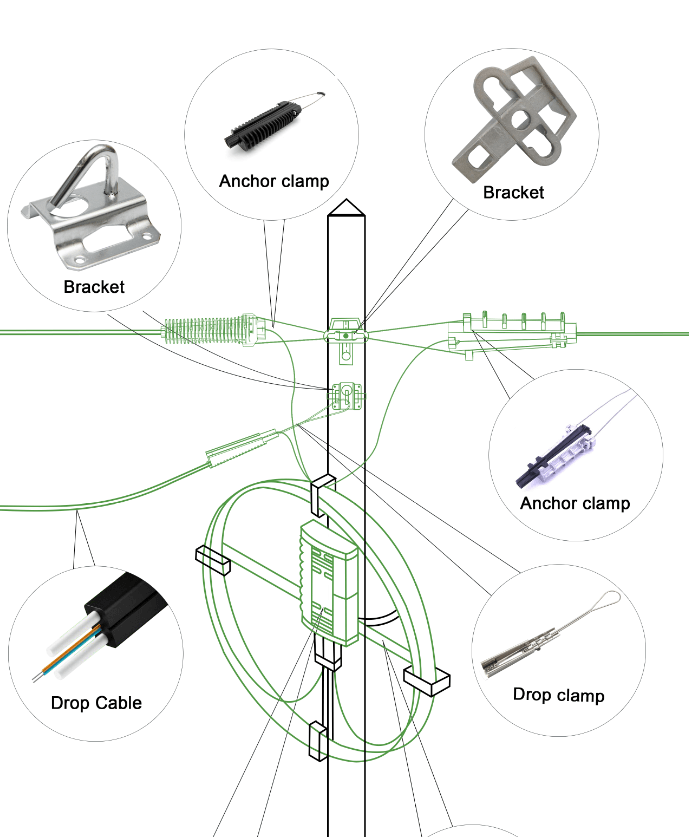

Fixing and keeping in tension the optical cable with a remote metal power element type 8 on the supports of overhead power lines.
